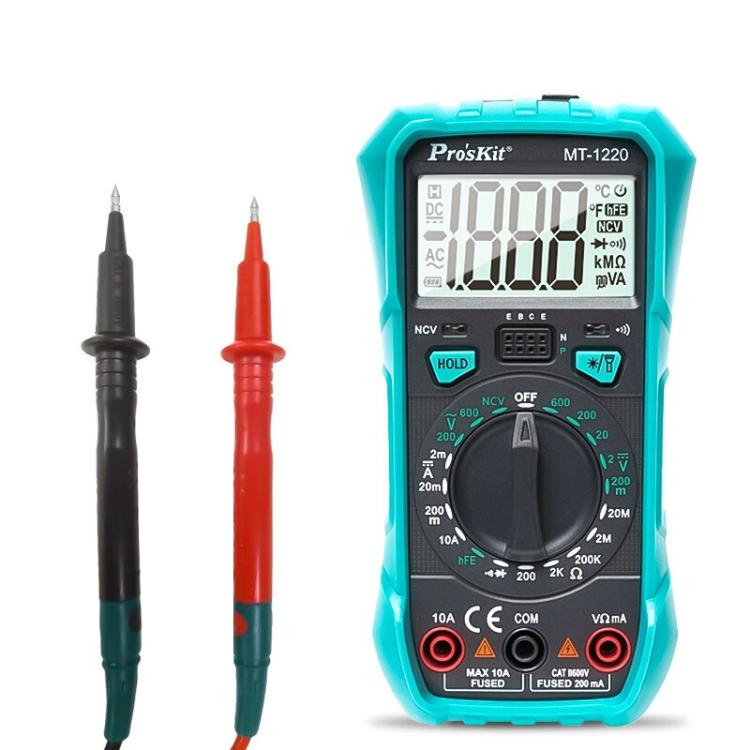

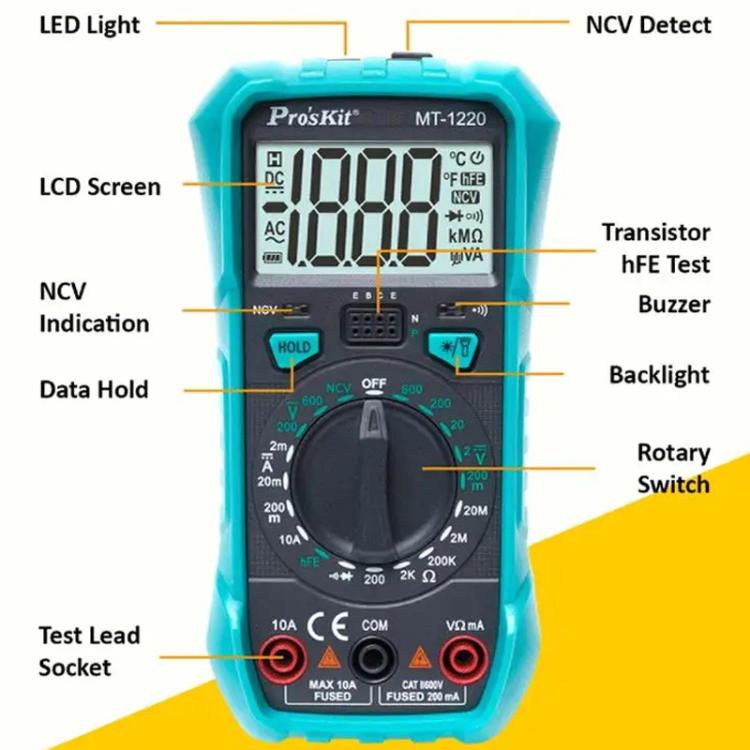

3-1/2 Burn-Proof Digital Intelligent Multimeter

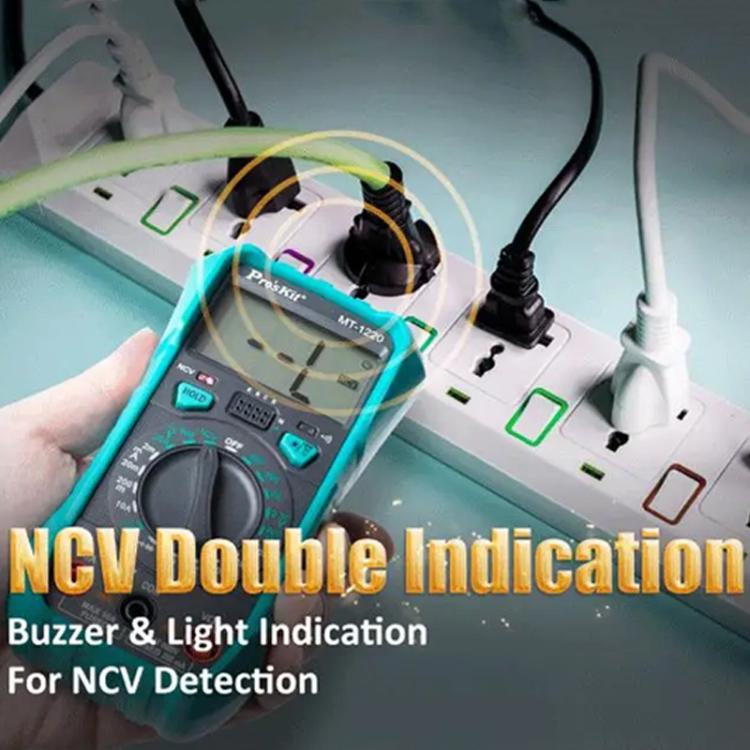

1. NCV non-contact voltage detection: detects voltage signal, buzzer sounds and LED indicator lights turn on.

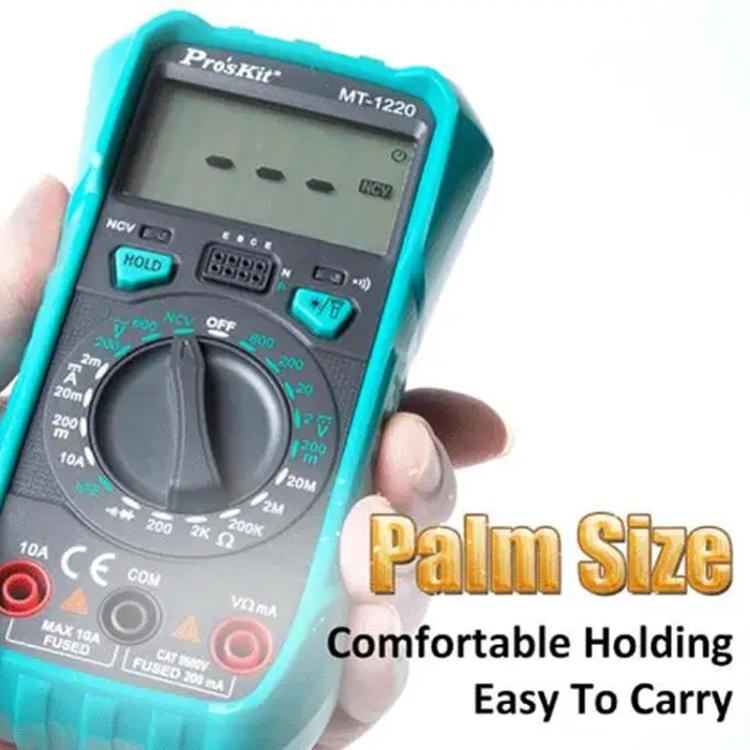

2. Ergonomic design, fits the palm, comfortable to hold.

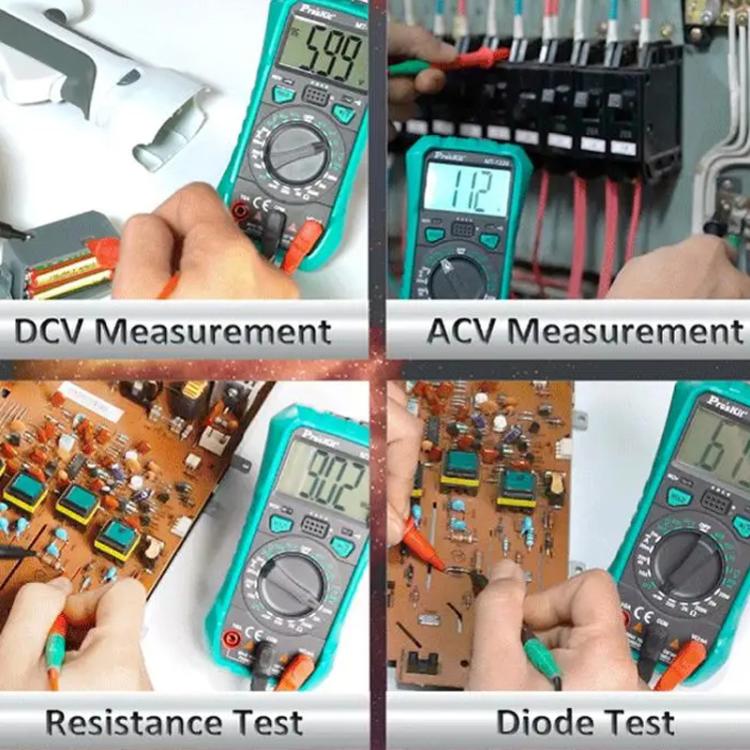

3. Diverse functions, capable of conducting DC voltage/AC voltage tests/ resistance/ diode/ transistor/ DC current measurement.

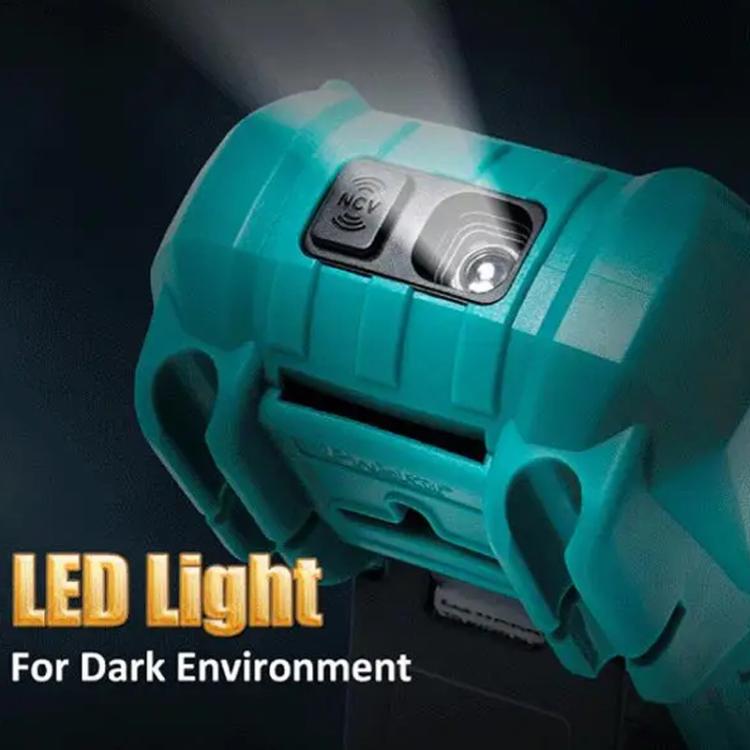

4. LED lighting, no problem in dark environments.

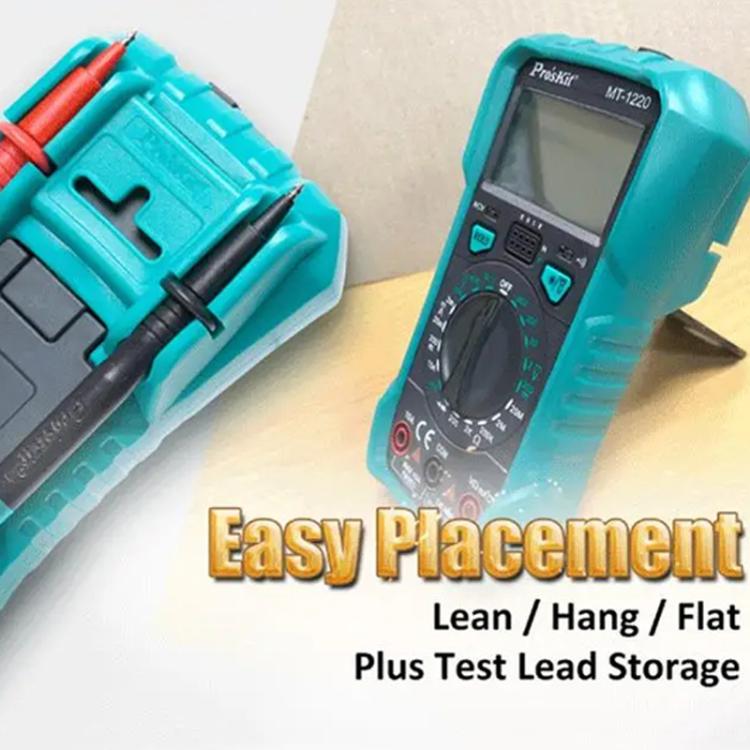

5. Easy to use, can be placed at an angle/hung, convenient for measurement and reading, pen holder design for convenient storage.

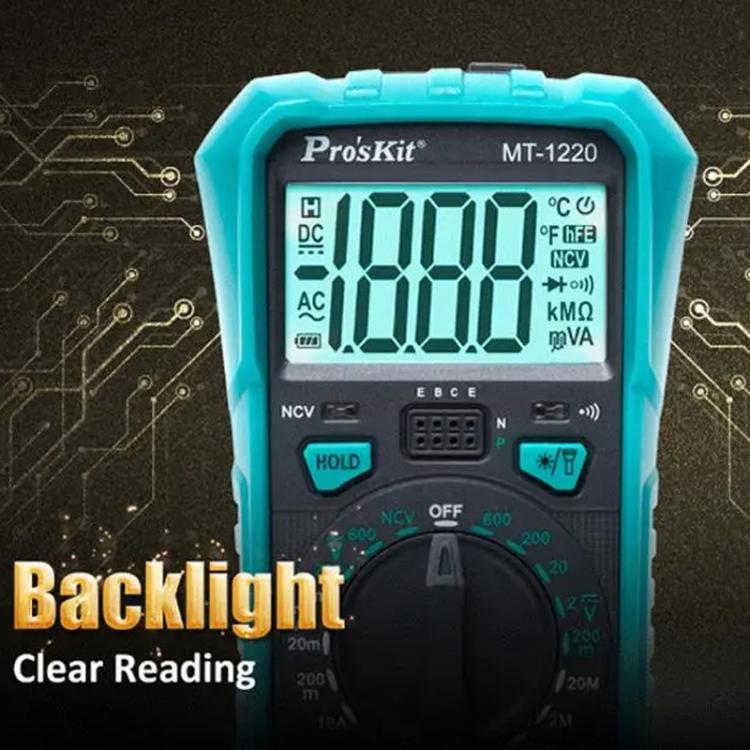

6. Backlighting design, clear reading values without strain.

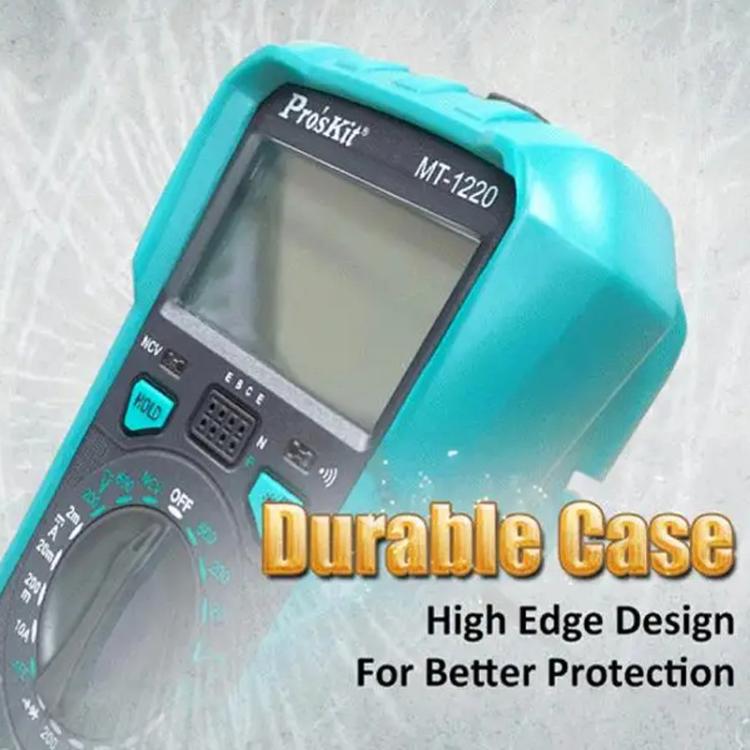

7. Shock-absorbing rubber sleeve designed to protrude above the instrument body, reducing the probability of damage caused by drops.

Parameters
1. Display: 3 1/2 maximum display 1999
2. On-off buzzer: less than or equal to 30 ohms, buzzer sounds
3. DC voltage: 200mV/2V/20V/200V; accuracy +/- (percent 0.5 + 5d); 600V +/- (percent 0.8 + 5d)
4. AC voltage: 200V; accuracy +/- (percent 1 + 10d); 600V; accuracy +/- (percent 1.2 + 10d)
5. DC current: 2mA/ 20mA/ 200mA; accuracy +/- (percent 1.0 + 5d); 10A; accuracy +/- (percent 3.0 + 10d)
6. Resistance: 200/2k/200k/2M ohms; accuracy +/- (percent 1 + 3d); 20M ohms; +/- (percent 1.5 + 3d)
7. Functions: diode measurement/transistor measurement/supplementary lighting LED/low voltage display/NCV (AC 90V - 600V 50/60Hz)
8. Power supply: 3 AAA batteries(not include)

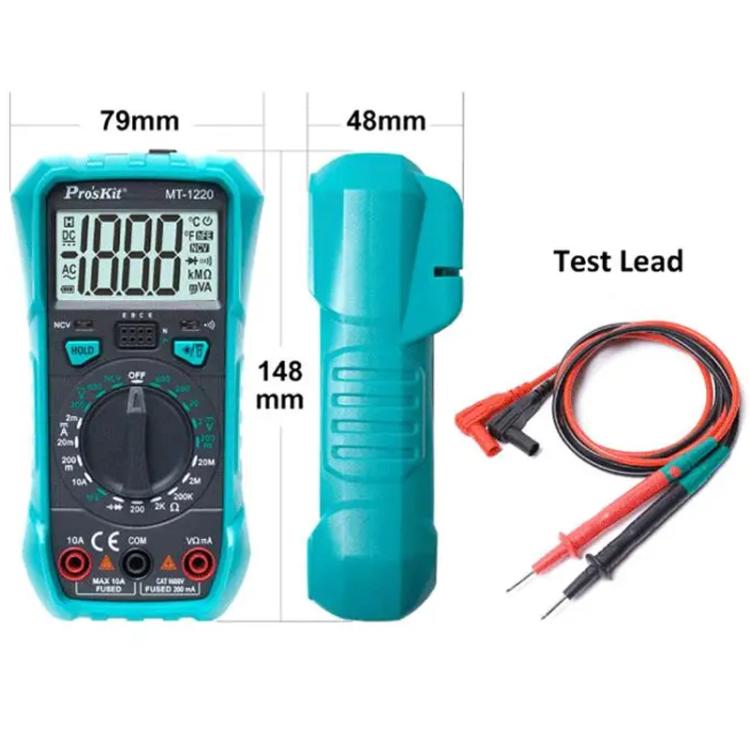

9. Size: about 14.8 x 7.9 x 4.8 cm
