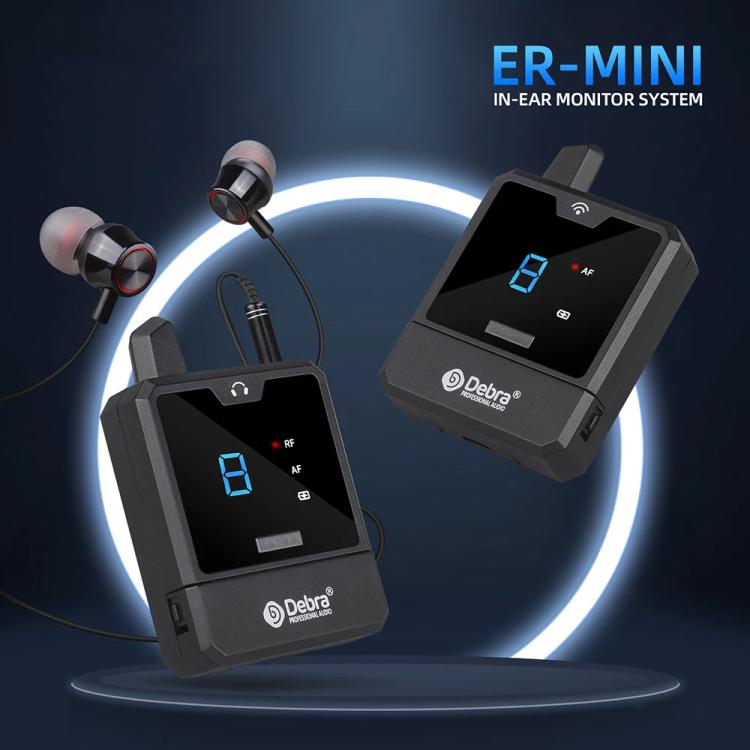

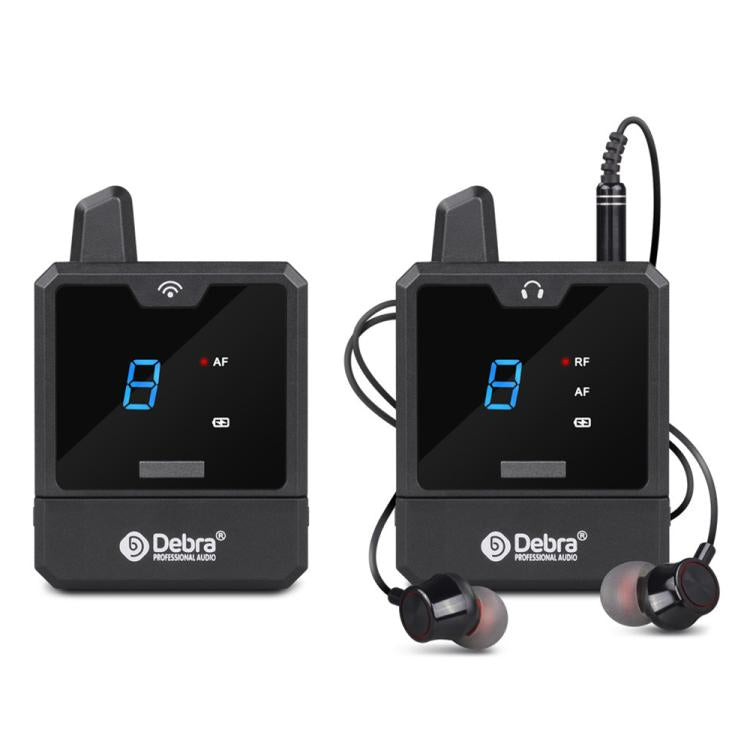

DEBRA ER-mini Portable Wireless Monitor System Transmitter & Receiver
DEBRA ER-mini Portable Wireless Monitor System Transmitter & Receiver
Regular price
$176.00 USD
Regular price
Sale price
$176.00 USD

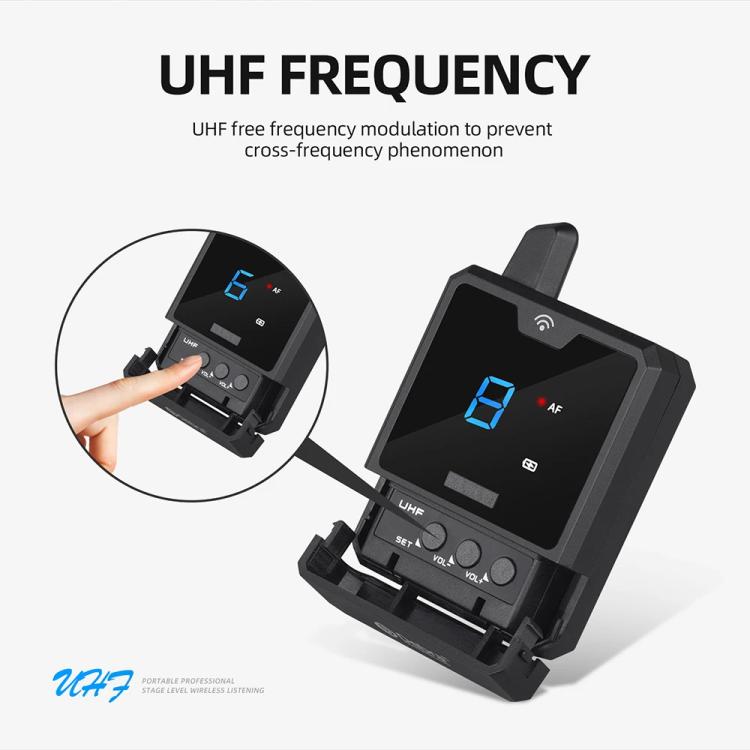

1. UFH frequency modulation and one-touch pairing prevent crosstalk.

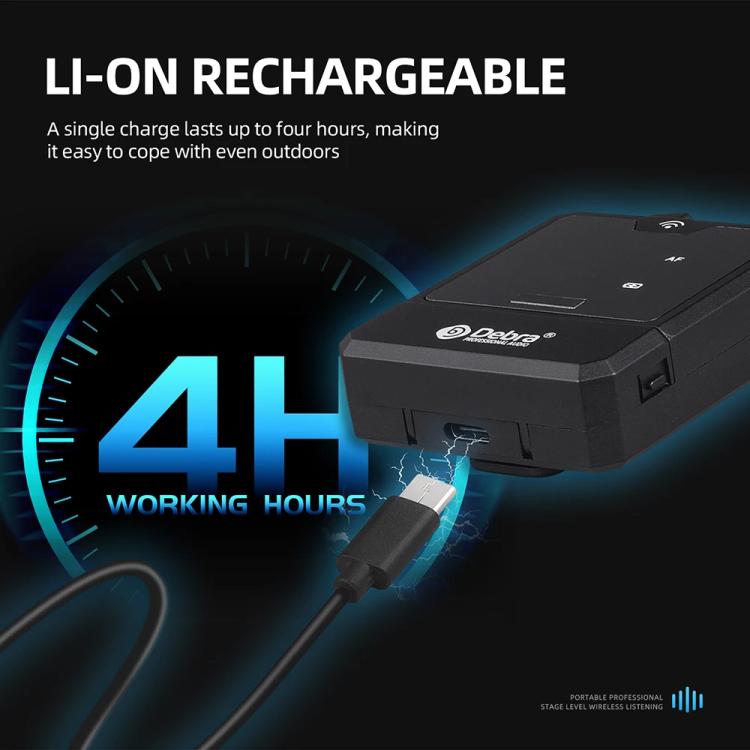

2. Built-in rechargeable lithium battery provides 4 hours of continuous use, suitable for outdoor use.

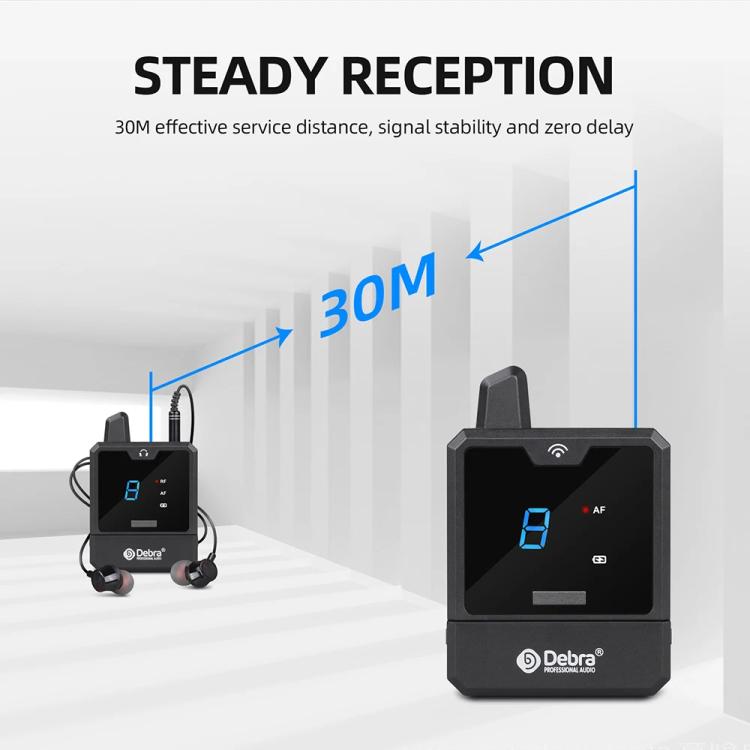

3. Stable signal reception with zero latency and an effective transmission distance of up to 30 meters.

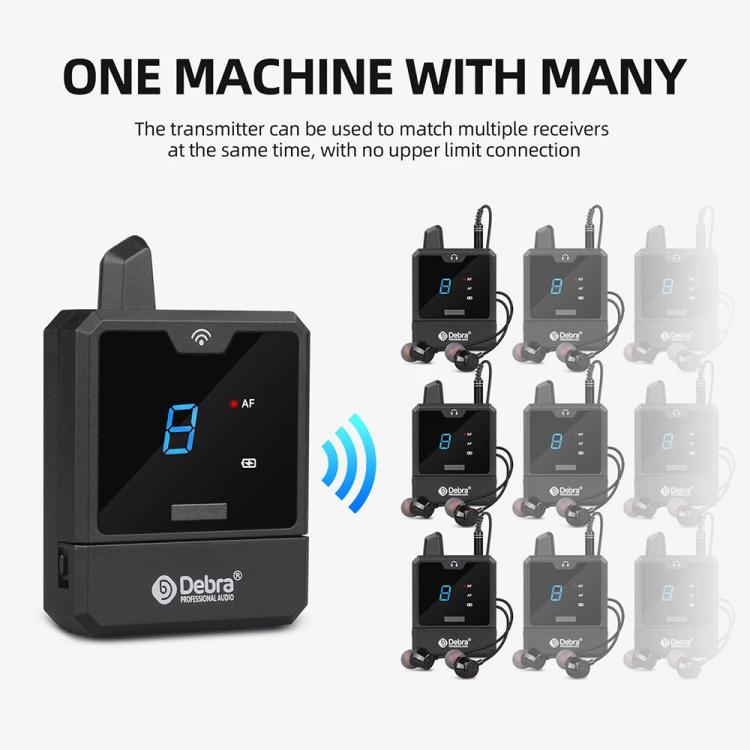

4. One transmitter can be paired with multiple receivers simultaneously.

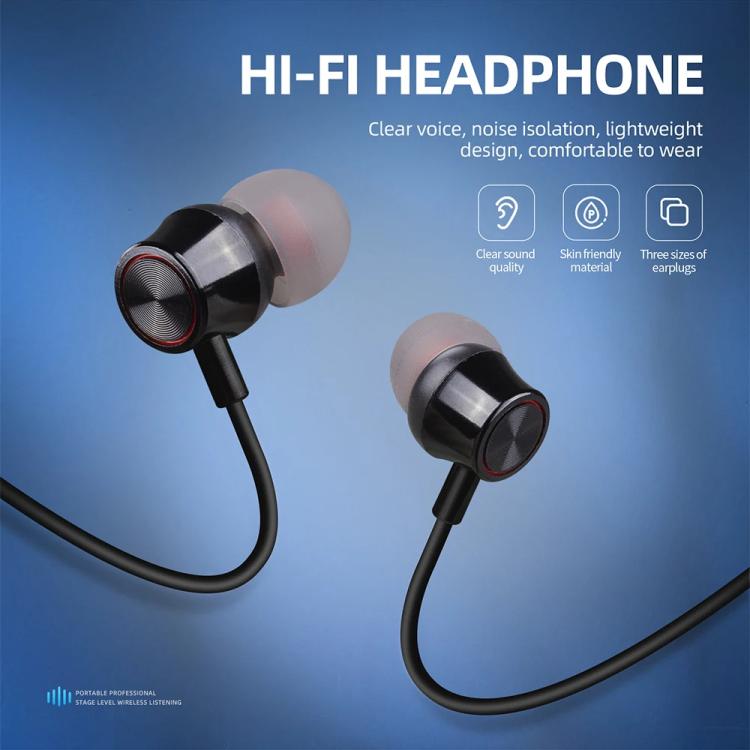

5. Includes high-fidelity headphones for noise isolation and clear vocals.

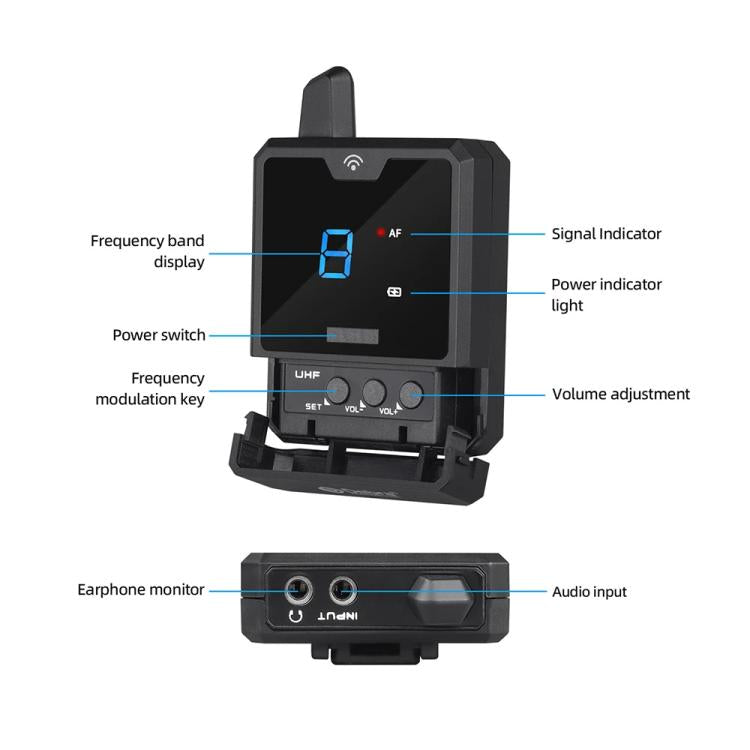

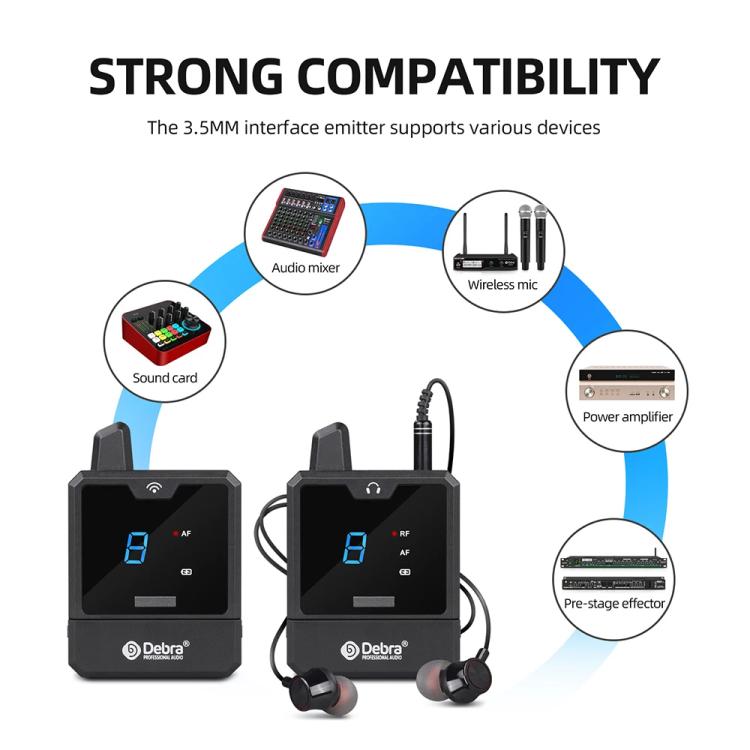

6. The transmitter with 3.5mm port supports connecting to sound cards, mixers, microphones, amplifiers, effects processors, and other devices.

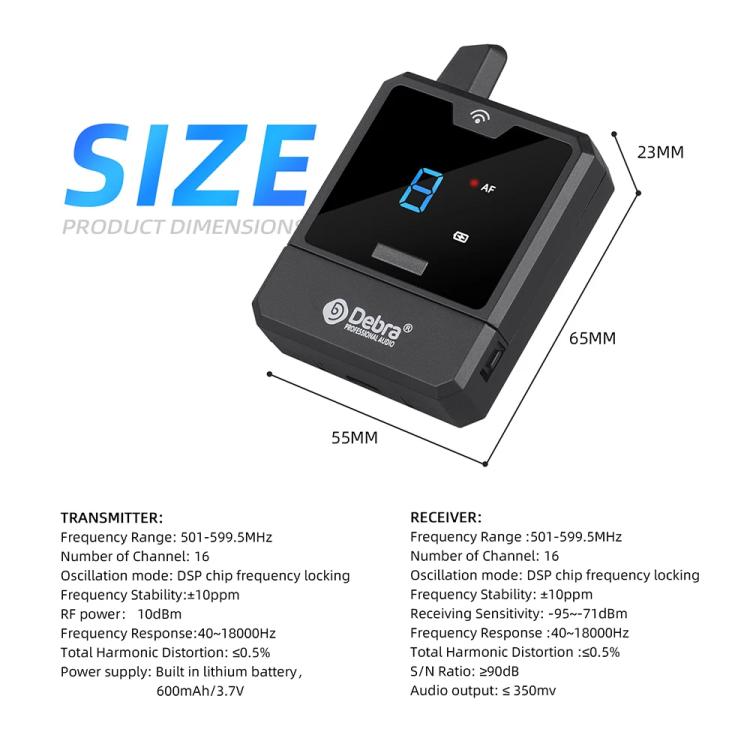

Transmitter Specifications
Frequency Range: 501-599.5MHz
Number of Channels: 16
Oscillator Mode: DSP Chip Frequency Lock
Frequency Stability: +/-10ppm
RF Power: 10dBm
Audio Frequency Response: 10-18000Hz
Distortion: <=0.5%
Battery: 600mAh/3.7V
Receiver Specifications
Frequency Range: 501-599.5MHz
Number of Channels: 30
Oscillator Mode: DSP Chip Frequency Lock
Frequency Stability: +/-10ppm
Receiver Sensitivity: -95 to -71dBm
Audio Frequency Response: 40-18000Hz
Distortion: <=0.5%
Signal-to-Noise Ratio: >=90dB
Audio Output: 350mV max

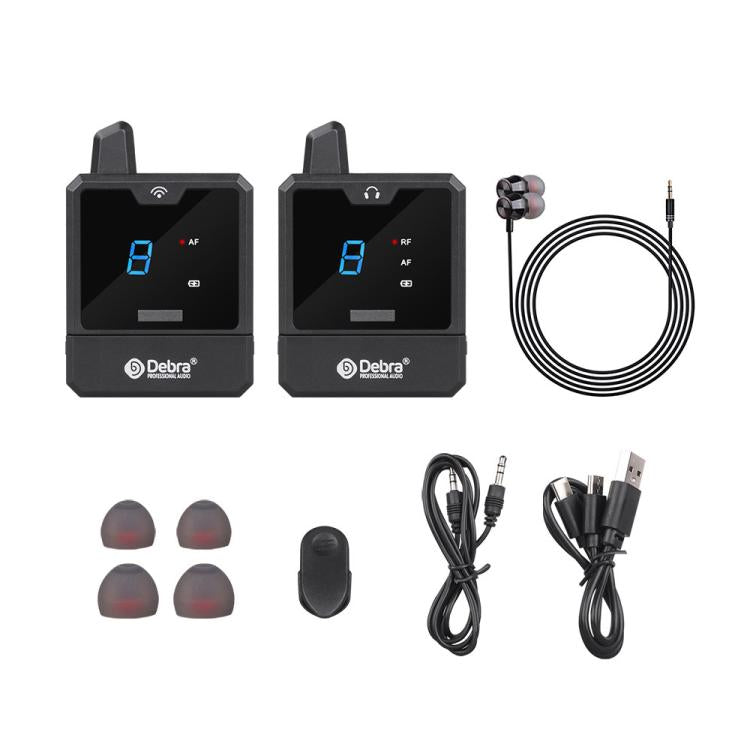

Packaging Contents:
Transmitter x 1
Receiver x 1
Earphones x 1
Type-C Cable x 1
Audio Cable x 1
2. Built-in rechargeable lithium battery provides 4 hours of continuous use, suitable for outdoor use.
3. Stable signal reception with zero latency and an effective transmission distance of up to 30 meters.
4. One transmitter can be paired with multiple receivers simultaneously.
5. Includes high-fidelity headphones for noise isolation and clear vocals.
6. The transmitter with 3.5mm port supports connecting to sound cards, mixers, microphones, amplifiers, effects processors, and other devices.
Transmitter Specifications
Frequency Range: 501-599.5MHz
Number of Channels: 16
Oscillator Mode: DSP Chip Frequency Lock
Frequency Stability: +/-10ppm
RF Power: 10dBm
Audio Frequency Response: 10-18000Hz
Distortion: <=0.5%
Battery: 600mAh/3.7V
Receiver Specifications
Frequency Range: 501-599.5MHz
Number of Channels: 30
Oscillator Mode: DSP Chip Frequency Lock
Frequency Stability: +/-10ppm
Receiver Sensitivity: -95 to -71dBm
Audio Frequency Response: 40-18000Hz
Distortion: <=0.5%
Signal-to-Noise Ratio: >=90dB
Audio Output: 350mV max
Packaging Contents:
Transmitter x 1
Receiver x 1
Earphones x 1
Type-C Cable x 1
Audio Cable x 1
