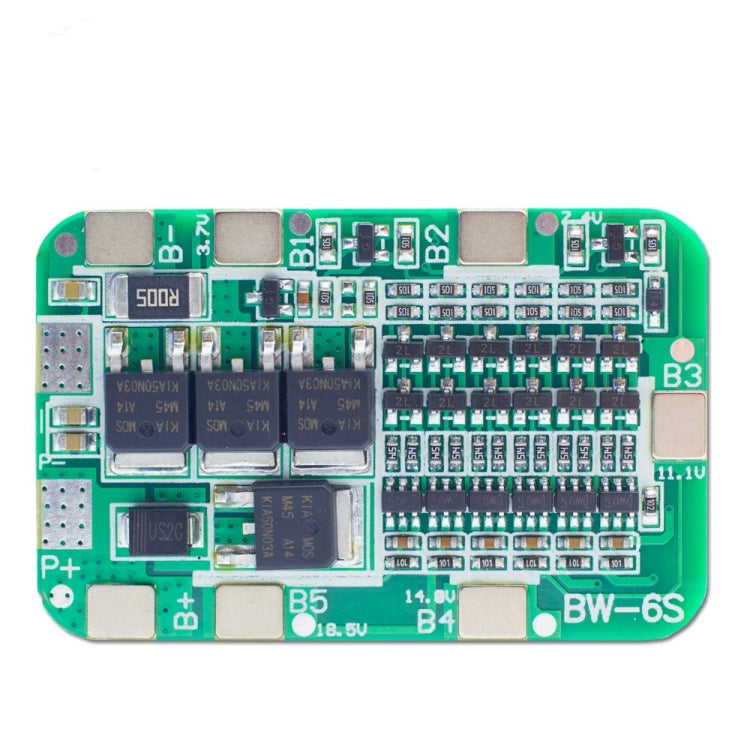

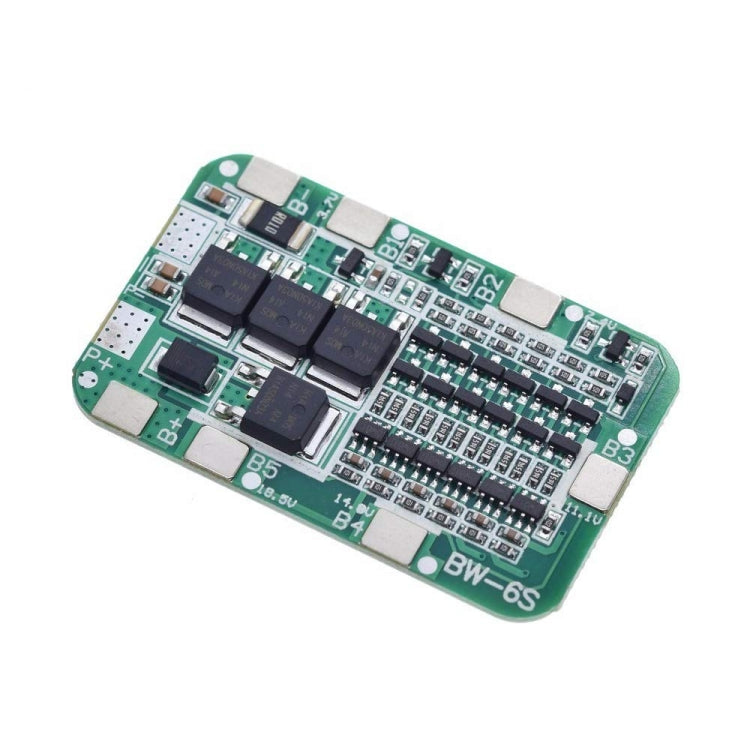

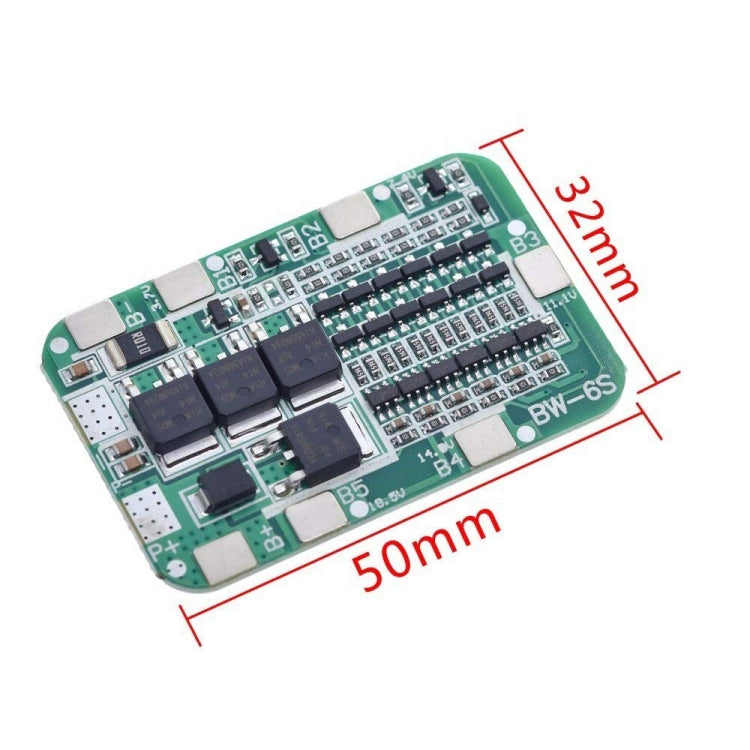

1. Integrated circuit boards for rechargeable (generally lithium batteries) protection 2. Discharge: large discharge current: 15A; instantaneous discharge current: 25A 3. Charging: voltage: 25.5V; current: 15A 4. Overcharge protection: detection voltage: about 4.28V; delay time: 0.1S; release voltage: about 4.08V 5. Over-discharge protection: detection voltage: 2.55V; detection delay: 0.1S; release voltage: about 2.9V 6. Over-current protection: detection voltage: 150mV; detection delay: 9MS; current: about 30A; release condition: disconnect the load 7. Short-circuit protection: protection condition: external load short-circuit; detection delay: 250uS; release condition: disconnect the negative open 8. Internal resistance: the internal resistance of the main circuit is less than or equal to 20 mOhm 9. Self-consumption: working current: less than or equal to 30uA; sleep current (when the battery is over-discharged): less than or equal to 10uA 10. Operating temperature range: -30/+80 degrees Celsius 11. Size: about 50 x 32 x 3mm 12. Weight: about 8g
