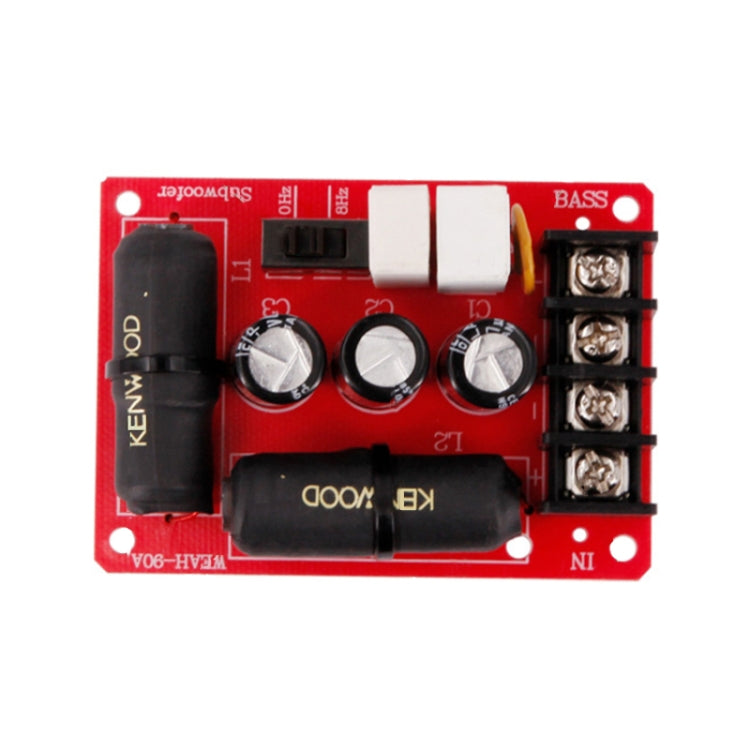

DIY Audio Bass Crossover Solderless High Power Divider

1. Application speakers: home stereo and car stereo bass/subwoofer speakers
2. Filtering characteristics: independent bass/ subwoofer
3. Capped power: 200W
4. Applicable speakers: 2.5-8 inch
5. Impedance: 4-8 ohms

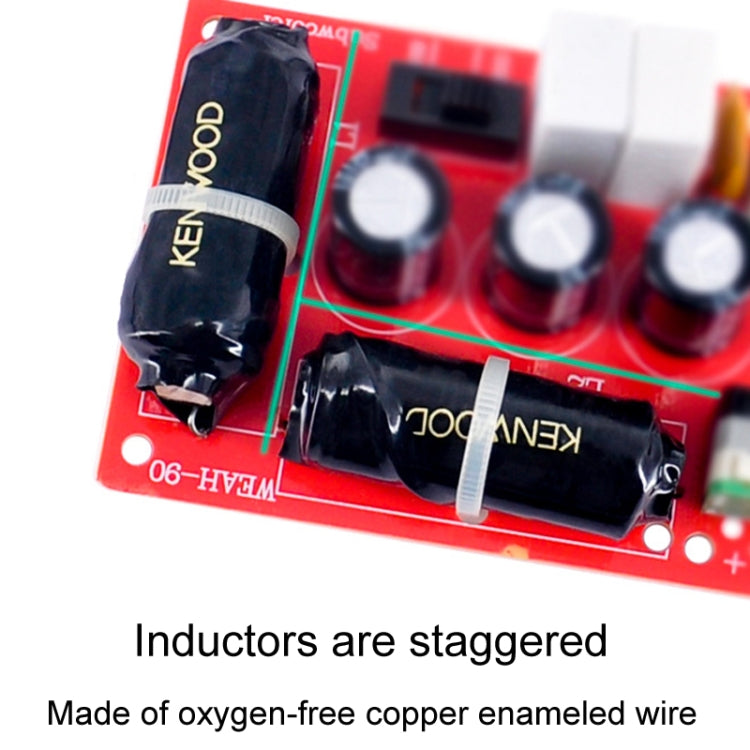

6. Inductors using oxygen-free copper enameled wire, audio special double inductors in series, and 90 degrees staggered

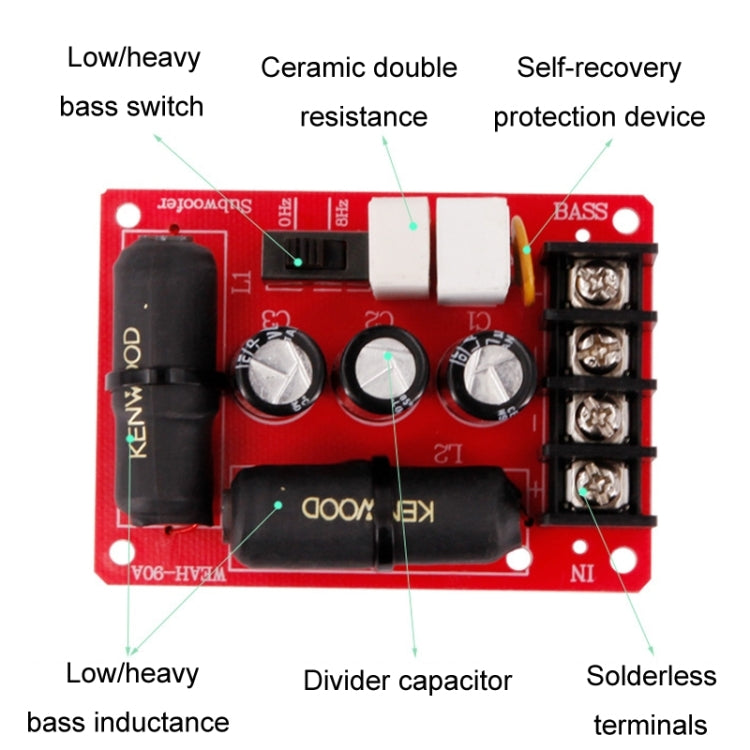

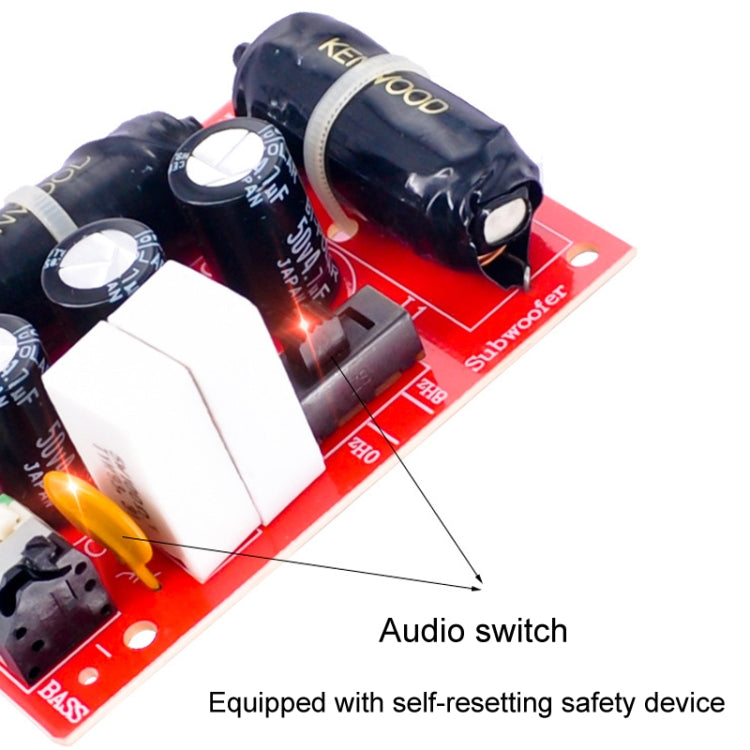

7. Equipped with self-recovery insurance device, through the 2A high-current switch for 1.5mH bass and 3.0mH subwoofer between free conversion
8. This crossover increases the frequency point adjustment function, which can be adapted to a variety of speakers

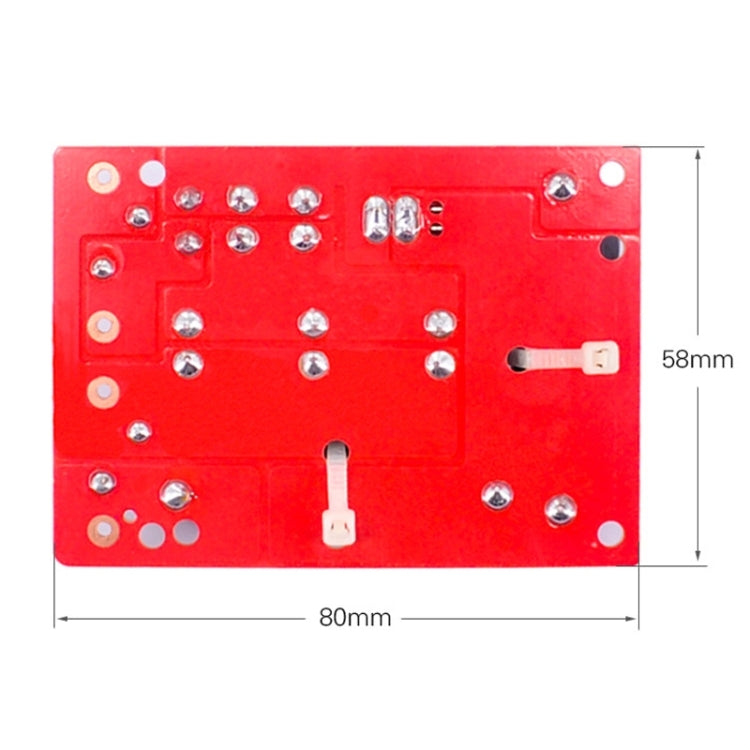

9. Size: 80 x 58 x 28mm
