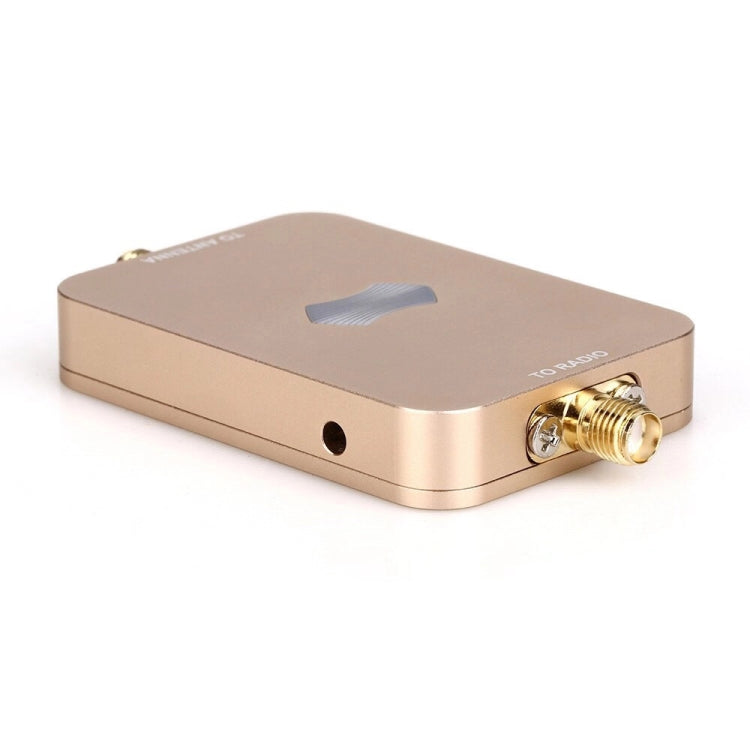

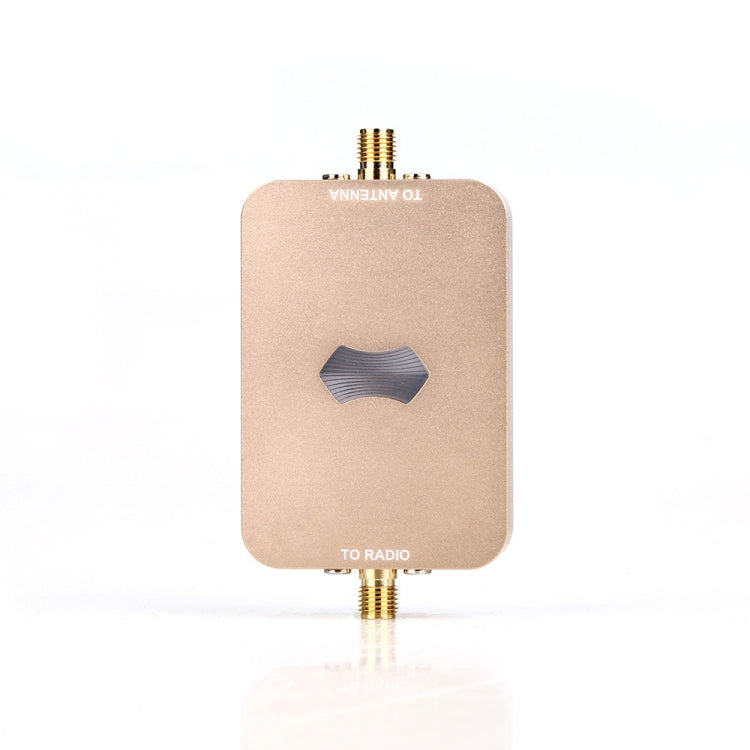

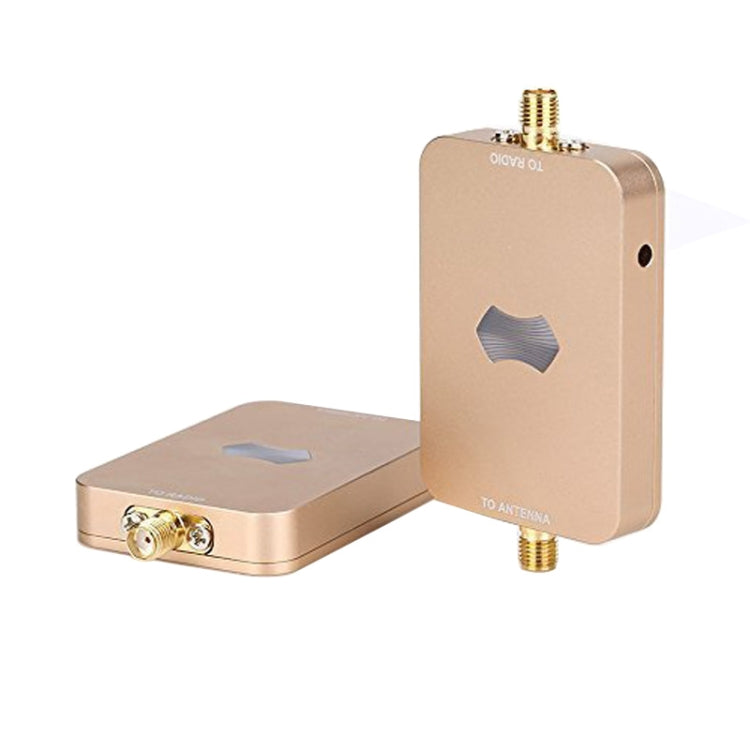

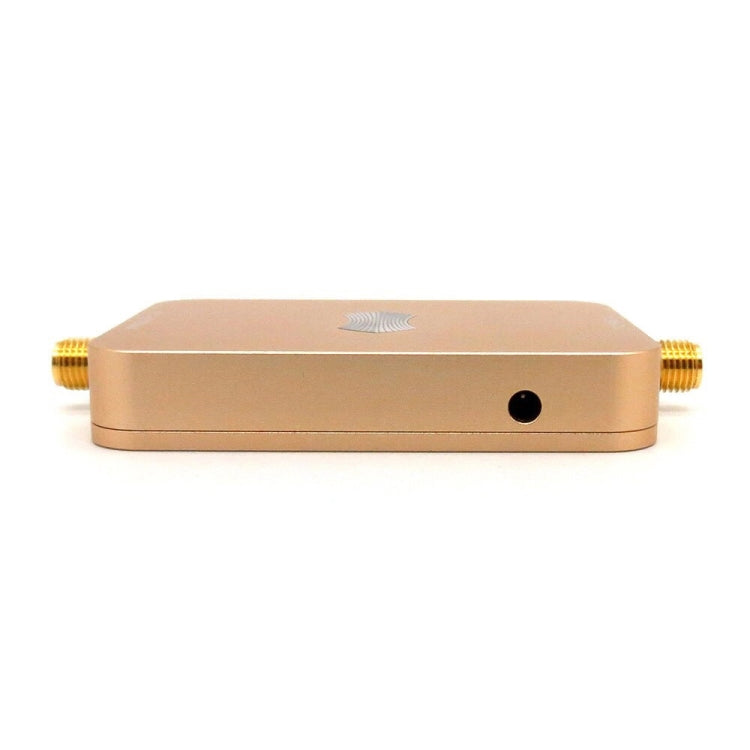

SH-RC24G3W 2.4GHz 3W Wireless WiFi Signal Booster Amplifier for UAV RC, SH-RC24G3W

Features
1. Compact size and lightweight.
2. Designed for drones, UAV, RC equipment etc..
3. 3000mW 2.4GHz UAV RC wifi signal booster amplifier.
4. Designed for use in a variety of mobile and wireless networking applications.
5. Result in a further reaching signal and better connectivity.

Parameters
1. Model No.: SH-RC24G3W
2. Operating Range: 2.4~2.5 GHz
3. Channel Size: 20Mhz & 40Mhz
4. Support Standard: IEEE 802.11/b/g/n
5. Operating Mode: bidirectional transmission mode, half-duplex transmission mode and time division duplex transmission mode
6. Connector Type: SMA
7. Output Power: 3000mW (35dBm)
8. Input Power: 0~20 dBm
9. Transmission Gain: 15-18dB
10. Receiver Gain: =< 12 dB
11. Noise Figure: =< 3.5 dB
12. Supported Voltage: 5V~16V/2A DC
13. Operating Temperature: -20 degree C to +70 degree C
14. Operating Humidity: Up to 75% relative humidity
15. Material: Aluminum Alloy
16. Booster Weight: 46g, Booster Size: 7.3 x 4 x 1cm

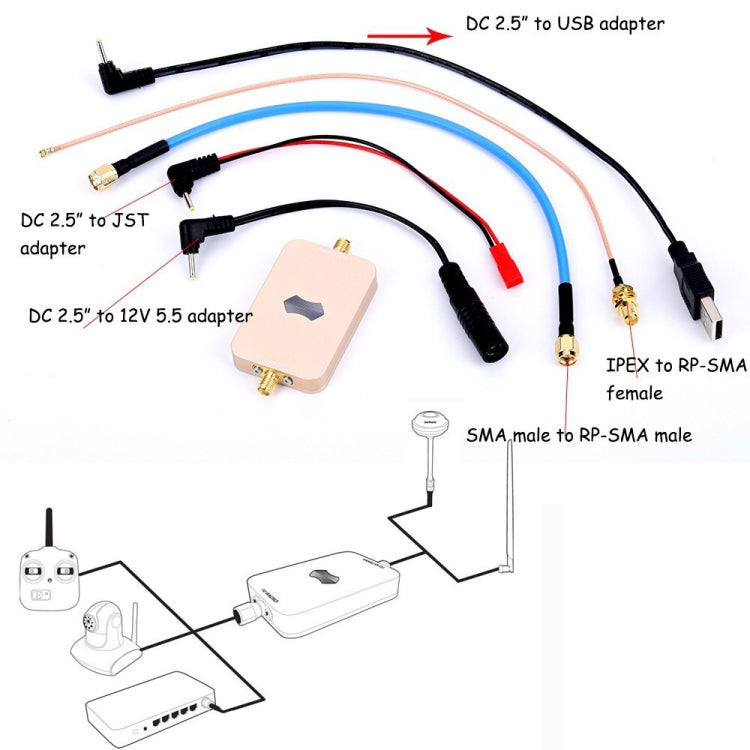

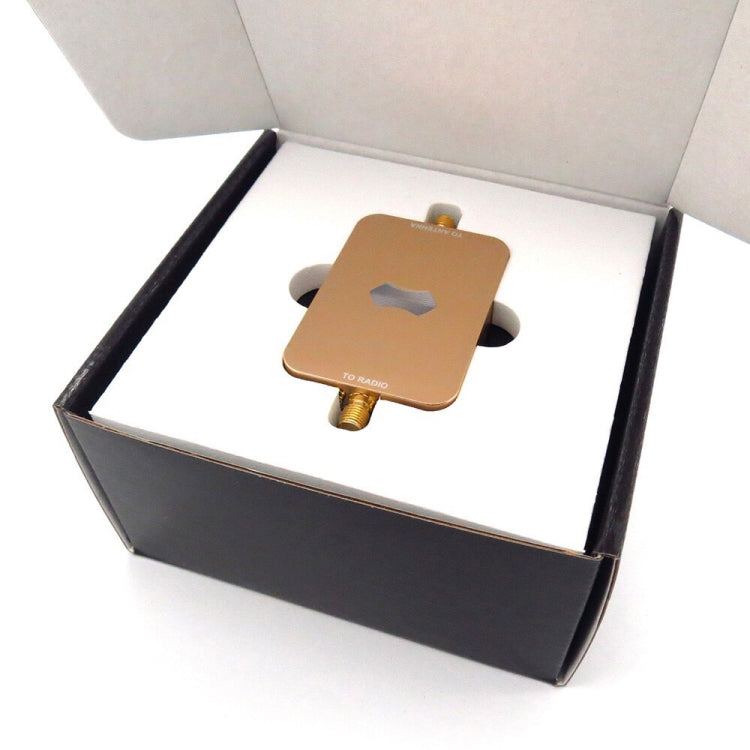

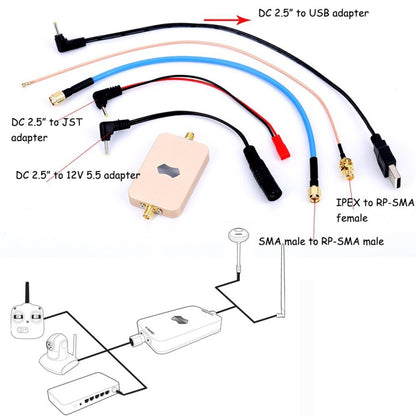

Package List
1. WiFi Signal Booster Amplifier x 1
2. RG141 20cm Cable x 1
3. DC 2.5 inch to 12V 5.5 inch Cable x 1
4. DC 2.5 inch to USB Cable x 1
5. DC 2.5 inch to JST Cable x 1
6. Magic Tape x 1
7. User Manual x 1
